Advanced composite design solution, allowing Structural Engineers to analyse and design composite structural components
PROKON 5.3 Composite capabilities include:
- Beam
- Continuous Beam
- Filled Column
- Encased Column

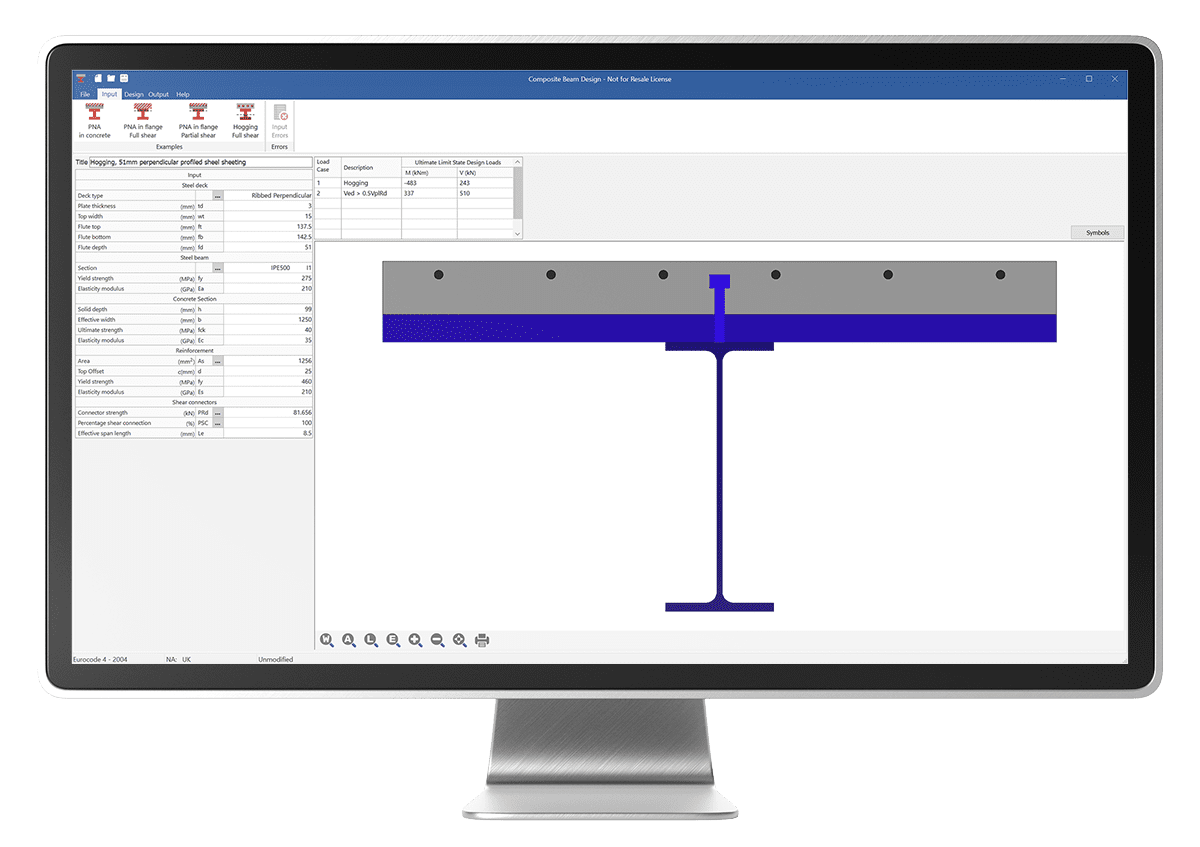

Input
Import section properties from a wide variety of international databases. See the graphics update in real-time to establish the most suitable layout.

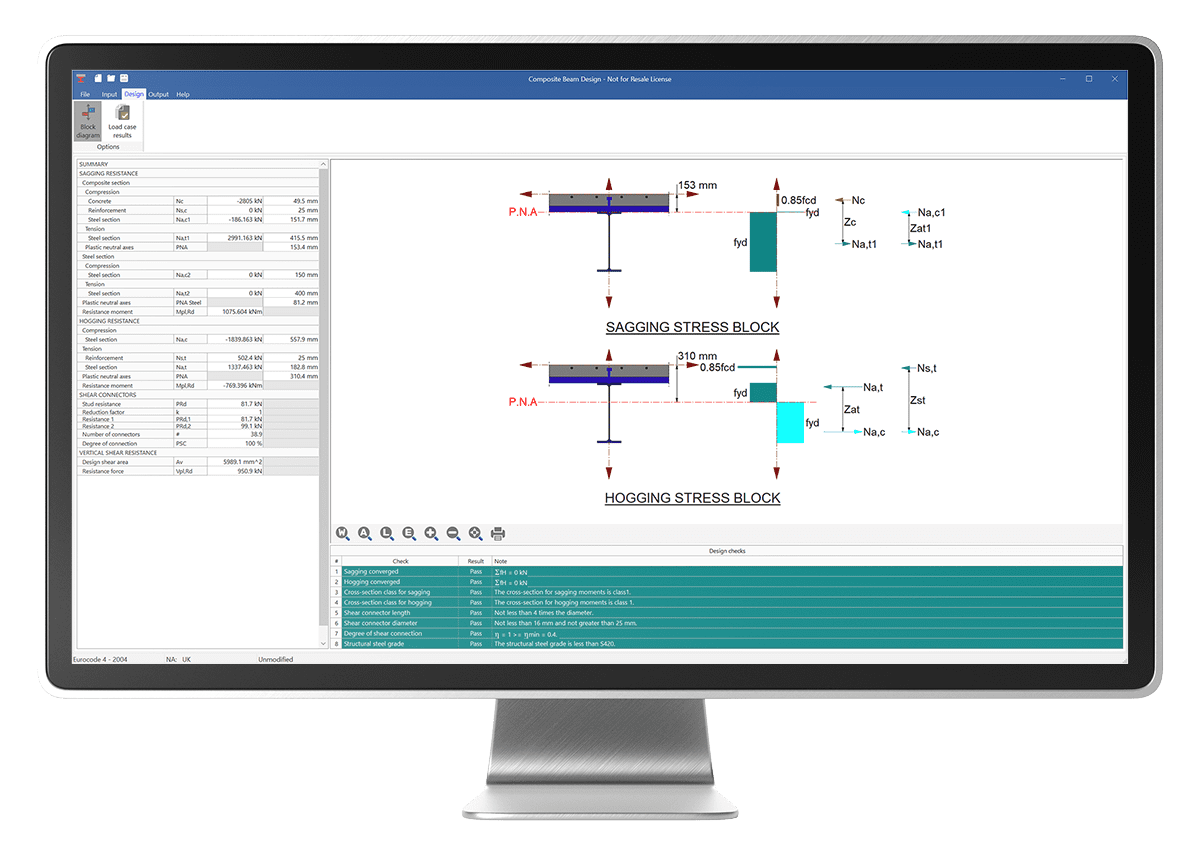

Design
Interactive diagrams provide insight into complicated structural behaviour.

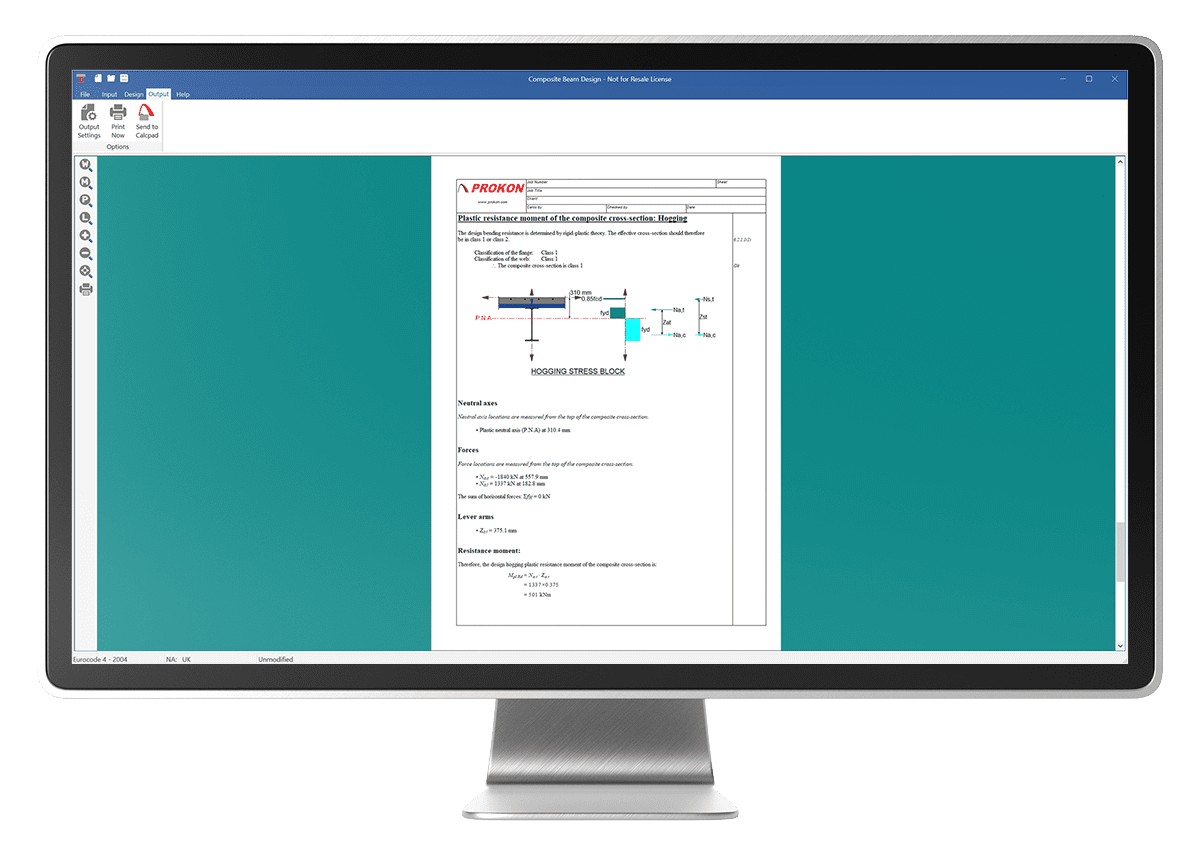

Output
The design report is compiled automatically and includes design assumptions, step-by-step procedures, and code references.
Benefits
The ultimate intuitive engineering software available on the market
Less ambiguity
Easy to understand
Reduction of manual work on the project
Familiar format of input for engineers
Example files are available to demonstrate the functionalities
Increases efficiency and accuracy
Reduction of human errors (Detailed calculations)
Performs single element checks and designs with detailed calculations.
Greater control to the design engineer
Program layout follows the engineering workflow
Rigid-plastic theory realises reserve capacity
Work anywhere
Ability to work in any country with an extensive range of design codes
Multi language
Allows the user to submit their reports in the preferred language for submission automatically
Key features
Rigid-plastic section analysis
Various deck types supported
Propped and unpropped construction methods allowed
Interactive design diagrams
Automated pattern loading
Detailed design report with code references and equations
Support for partial shear connectivity
Catalogue Support
