Powerful masonry design solution, allowing for the design of reinforced and unreinforced elements, delivering code-compliant designs, and detailed calculations reports with code references
PROKON 5.3 Masonry capabilities include:
- Sections
- Walls
- Free-standing walls

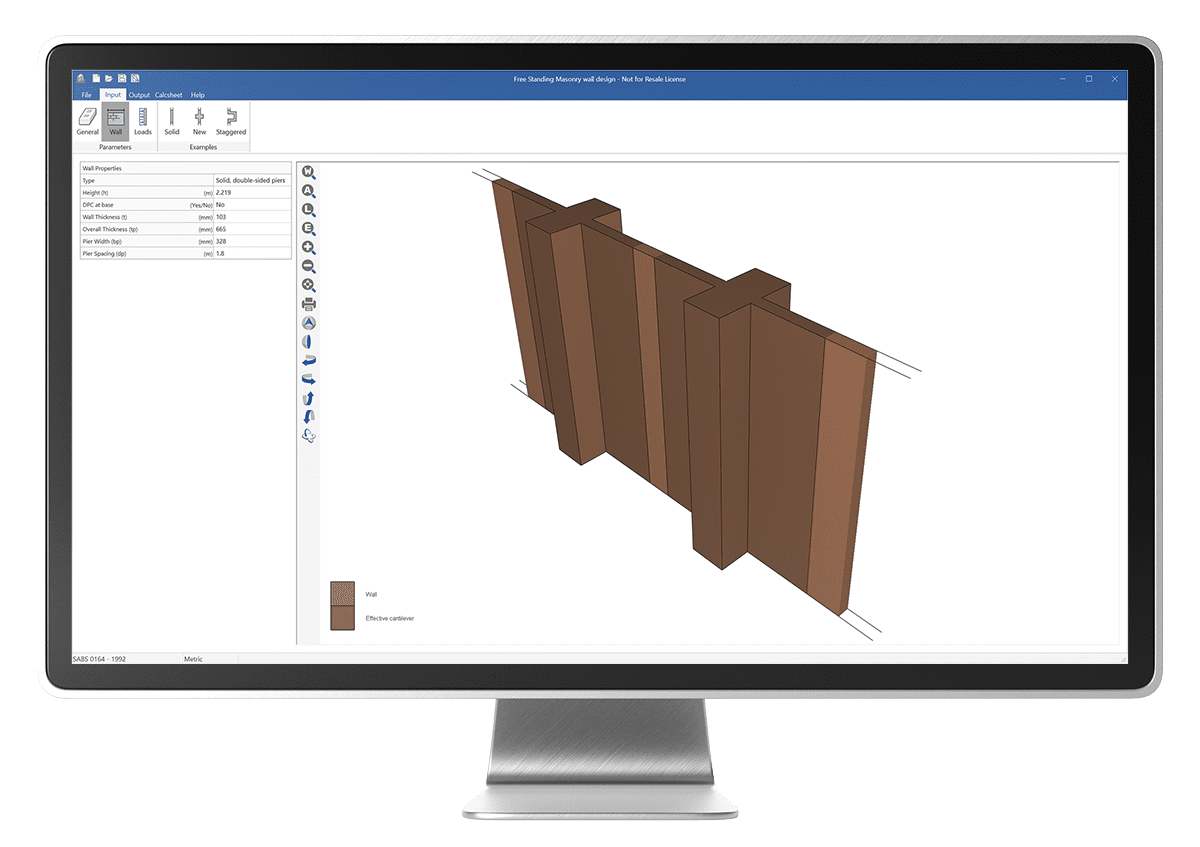

Input
Define masonry units and wall parameters and see the graphics update in real-time to establish the most suitable layout.

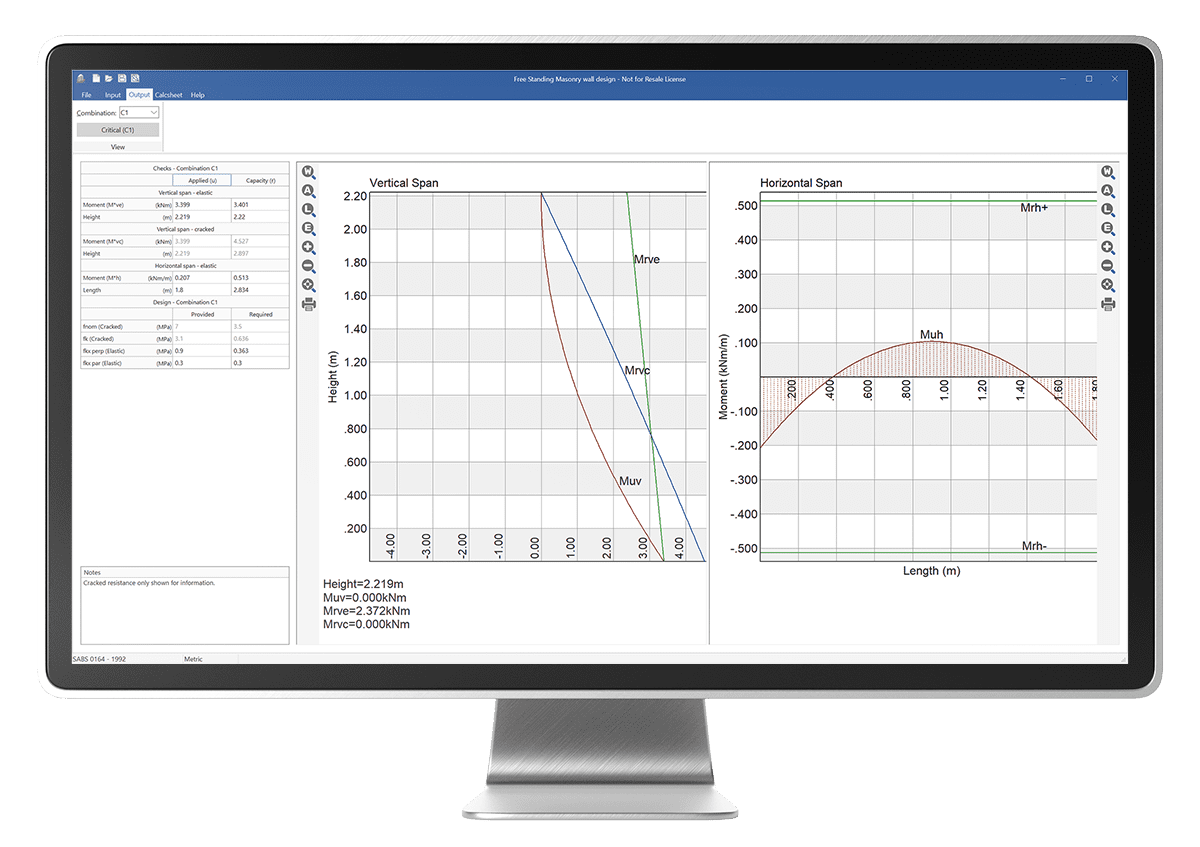

Output
Interactive diagrams provide insight into complicated structural behaviour.

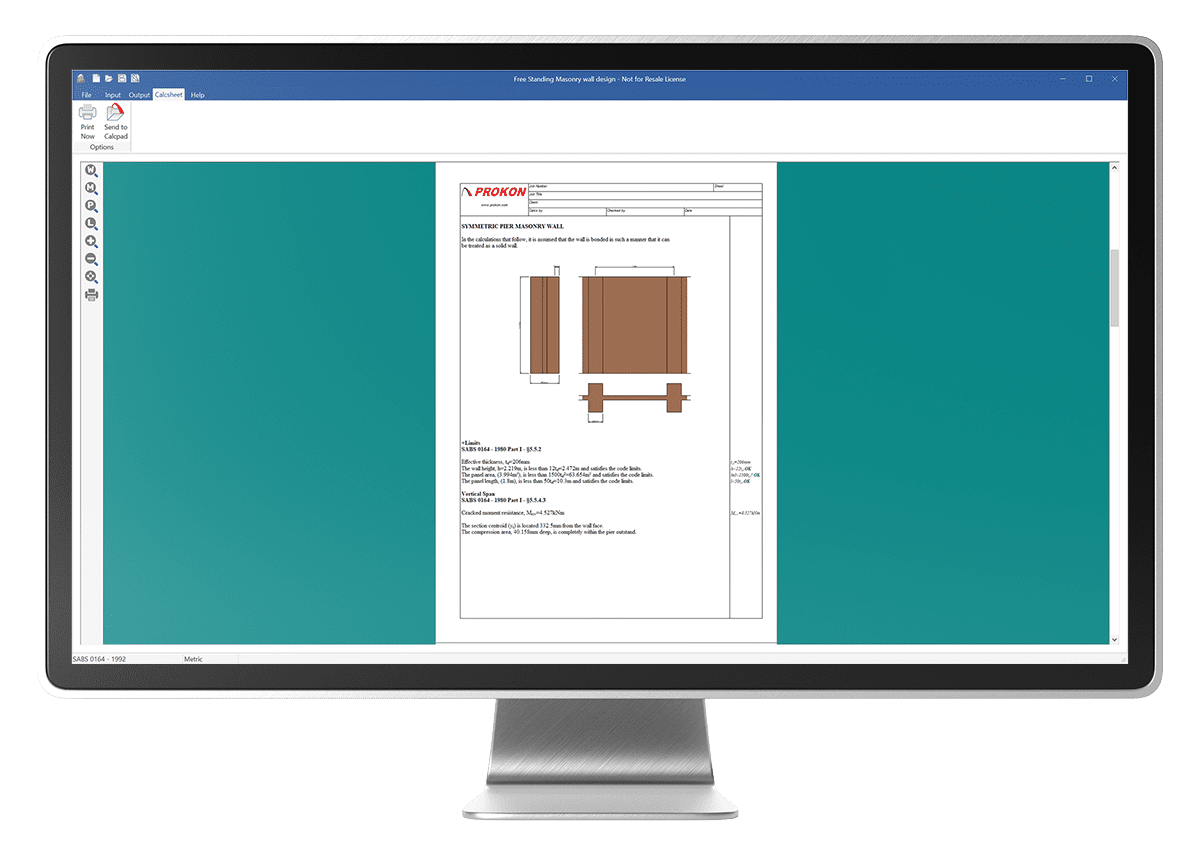

Calcsheets
The design report is compiled automatically and includes design assumptions, step-by-step procedures, and code references.
Benefits
The ultimate intuitive engineering software available on the market
Less ambiguity
Easy to understand
Reduction of manual work on the project
Familiar format of input for engineers
Example files are available to demonstrate the functionalities
Increases efficiency and accuracy
Reduction of human errors (Detailed calculations)
Greater control to the design engineer
Program layout follows the engineering workflow
Work anywhere
Ability to work in any country with an extensive range of design codes
Multi language
Allows the user to submit their reports in the preferred language for submission automatically
Key features
User-defined masonry units
Supports solid and cavity walls
Elastic and cracked resistance calculated
Vertical and lateral loads on panels
Yield line analysis
Various edge restraints available
Detailed calculations
